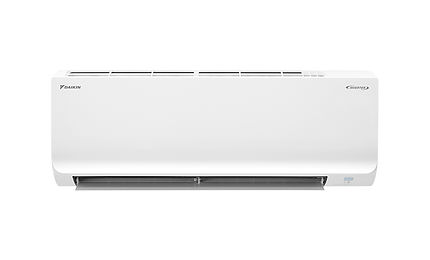

MAX INVERTER STAR KQ SERIES FTKQ-YV2S

MAX INVERTER STAR KQ SERIES FTKQ-YV2S

The Inverter system air conditioner, featuring the Coanda design, efficiently circulates cool air throughout the room, reaching the ceiling for rapid and thorough cooling. New Powerful mode provides instant cooling within 1 minute. Air quality filter capable to capture PM2.5 and inhibit germs. Self-Hygiene Booster function eliminates unpleasant odors from mold and bacteria. Save on electricity bills with no.5, 1-star energy saving rating. Trust the KQ series for cost-effective efficiency.

New Powerful Mode

Reduce the air temperature from the evaporator by more than 10 degrees Celsius within 1 minute and more than 15 degrees Celsius within 1 minute and 12 seconds.

Air quality filter (Enzyme blue & PM2.5)

The latest filter that can not only filter fine dust, PM2.5 but also inhibit odors. Allergens, viruses, and bacteria effectively. With Enzyme Blue technology, it has been tested that it can inhibit germs up to 99.99%.

Self-Hygiene Booster

Automatic cleaning system by washing the Heat Exchanger to keep the evaporator clean to reduce bacteria and mold, which can cause a musty odor.

COANDA Comfort Airflow

The design of the Coanda airflow vent allows for longer-range air distribution towards the ceiling, ensuring rapid and even cooling throughout the entire room.

Highlight Features

Super PCB Pro (Low/High voltage shield)

Extra durable circuit board which can work even a power drop to 150 volts, continuous coolness and worry less about the power surge problem. Durable up to 440 volts with dust-proof coating humidity and insects.

Swing Compressor

Daikin's swing-type Compressor is unique from other inverter systems. The core and rotating roller in these units are connected in one piece, which greatly reduces the levels of friction, vibration and Coolant leakage during compression. This leads to quieter and more efficient operation. When operation begins, the system will accelerate the Compressor to rapidly cool, and when the desired temperature has been reached, the revolution speed of the Compressor will decrease, allowing a steady temperature and reduced sound levels, power surges, and energy consumption compared to systems that do not employ inverters.

Lizard Proof Design

Daikin therefore developed a new coil unit to allow all channels to access circuit boards smaller than 4 mm.

Refrigerant R32

R32 is an Eco-friendly refrigerant that is first used in Thailand by Daikin. Its cooling capability, known to be higher than R22 and R410A, decreases compressor’s overworking.

Other Features

0.5°C step room temperature setting

The temperature can be increased and decreased by 0.5 degrees Celsius. bringing you closer to the coolness and comfort.

Product Specification

Specification
Unit
Remarks
Cooling Capacity
kW
2.7 (0.7-2.9)
Cooling Capacity
BTU/hr
9,200 (2,400 - 9,900)
Power Consumption
IN
860 (120 -1,100)
SEER
BTU/W.h
19.12
Label No.5
Power Supply
V/Ph/Hz
220 V / 1 Phase / 50 Hz
Indoor
Unit
Indoor Unit Model
FTKQ09YV2S
Fan Speed
5 Steps, Quiet, Auto
Air direction control
Auto Swing (Up-Down) Auto Swing (Up-Down)
Air Filter
Air Quality filter - PM2.5 & Enzyme Blue (PM 2.5 filter and Enzyme Blue)
Air Flow Rate
m3/min
9.9 / 8.4 / 7.1 / 4.6
Air Flow Rate
cfm
350 / 297 / 251 / 162
Sound Pressure Level
dB(A)
36 / 32 / 27 / 19
Indoor Casing Colour
Pure White (bright white)
Dimensions (HxWxD)
mm
285 x 770 x 226
Weight
kg
8
Drain Piping Connecting size
mm
Ø 5/8 inch
Outdoor
Unit
Outdoor Unit Model
RKQ09YV2S
Air Flow Rate
m3/min
15.1 / 12.8
Air Flow Rate
cfm
533 / 452
Sound Pressure Level
dB(A)
47 / 44
Quietest Sound Level
dB(A)
40
Outdoor unit colour
Ivory White
Dimensions (HxWxD)
mm
418x695x244
Weight
kg
21
Liquid Piping Connecting size
mm/inch/Hun
Ø 1/4 inch
Gas Piping Connecting size
mm/inch/Hun
Ø 3/8 inch
Outdoor heat exchanger
Copper tube
Compressor Type
Hermetically Sealed Swing Type
Piping Length: Max. length
m
15
Piping Length: Max. height
m
12
Refrigerant
R32
Piping Length: Charge less
m
15

*Based on usage of 8 cm. per day for 1 year x electricity cost of 5 baht per unit

Product Features

MODEL
Refrigerant and operation system
R32 Refrigerant
Compressor Type
Cooling and Airflow
Automatic 3D swing (up-down, left-right)
Auto Fan Speed
Heating
Intelligent eye system and operation
Working mode
Powerful Operation
cone Operation
Fan only operation
Cleanliness
Air purifying
Pre-Filter
Mold-proof Operation
Setting the time
Comfort Sleep Timer
24-hour On/Off Timer
Countdown On-Off Timer
Worry-free
Auto-restart
Anti-corrosion
Super PCB PRO
Remote control and control
MAX INVERTER STAR KQ SERIES FTKQ-YV2S
Swing Inverter
-
Cooling Only
-
-
-
-
-
Air quality filter (Enzyme Blue & PM 2.5)
Drying only
-
-
-
150 - 450 V
Option
