Sky Air

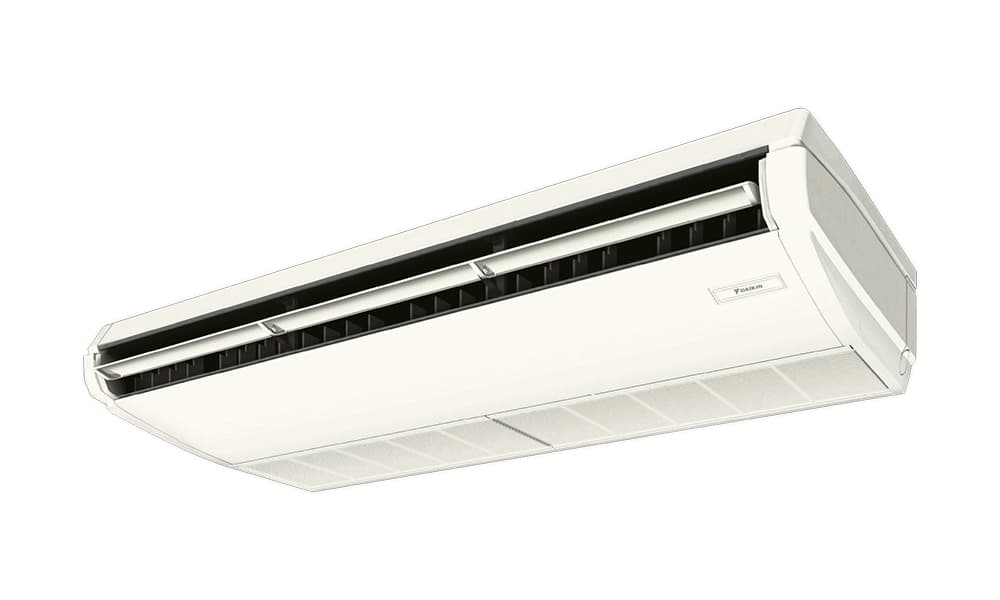

A ceiling-suspended commercial inverter unit built for larger spaces, using eco-friendly R32 refrigerant to cool efficiently without overworking the compressor, and installable in narrow spaces with only a 3 cm wall clearance.
Environmentally friendly refrigerant that cools more effectively than R22 or R410A without overworking the compressor.
Only a 3 cm gap from the wall is needed, allowing installation in tight spaces.
| Specification | Unit | Remarks |
|---|---|---|
| Cooling Capacity | kW | 12.3 / (5.7～14.0) |
| Cooling Capacity | BTU/hr | 42,000 / (19,500～47,800) |
| Power Consumption | W | 4,710 |
| SEER | BTU/W.h | 13.60 |
| Power Supply | V/Ph/Hz | 380 / 3 / 50 |
| Indoor Unit | ||
| Model | FHFQ42FV2S | |
| Air Flow Rate | m³/min | 31 / 27 / 23 |
| Air Flow Rate | cfm | 1,094 / 953 / 812 |
| Fan Speed | 3Step, Auto | |
| Air Filter | Resin net | |
| Sound Level | dB(A) | 44 / 41 / 37 |
| Dimensions (HxWxD) | mm | 235 x 1590 x 690 |
| Weight | kg | 38 |
| Drain Pipe | VP20 (I.D.∅20 x O.D.∅26) | |
| Outdoor Unit | ||
| Model | RZFQ42FY2S | |
| Color | Ivory white | |
| Sound Level | dB(A) | 54 |
| Dimensions (HxWxD) | mm | 990 x 940 x 320 |
| Weight | kg | 62 |
| Liquid Pipe | Ø9.5 mm (Flare) | |
| Gas Pipe | Ø15.9 mm (Flare) | |
| Compressor | Hermetically sealed swing type | |
| Refrigerant | R32 | |
| Max Piping Length (no extra refrigerant) | m | 15 |
| Max Piping Length | m | 50 (Equivalent length 70) |
| Max Height Difference | m | 30 |
| Coil Protection | CAZ Protection (Anti - Corrosion Micro Channel) | |
