Low Static Duct Inverter FDBF-EV2S

Sky Air

A concealed low-static-pressure duct unit designed for quiet spaces like bedrooms, running as low as 25 dB(A) at the lowest fan speed. Piping can connect from either the left or right side, and the slim 700 mm width suits hotel corridor installations.

E-Catalog

Highlight Features

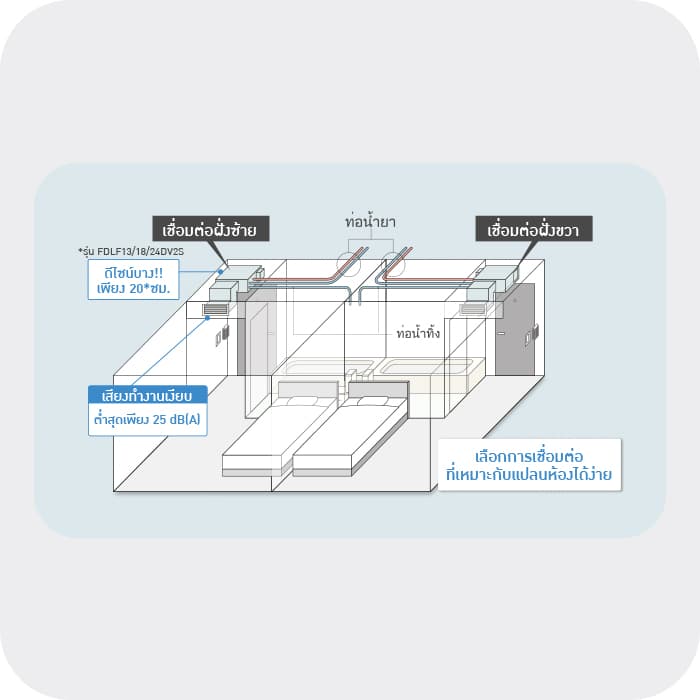

Connects From Either Side

Piping can be installed from the left or right, giving flexibility for different floor plans.

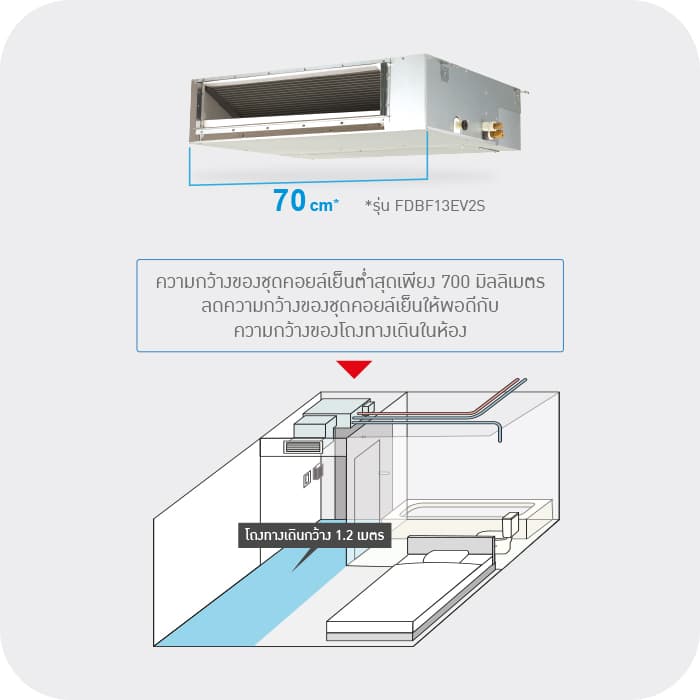

Hotel Corridor Design

A slim 700 mm width fits compactly above hotel room corridors and other tight ceiling spaces.

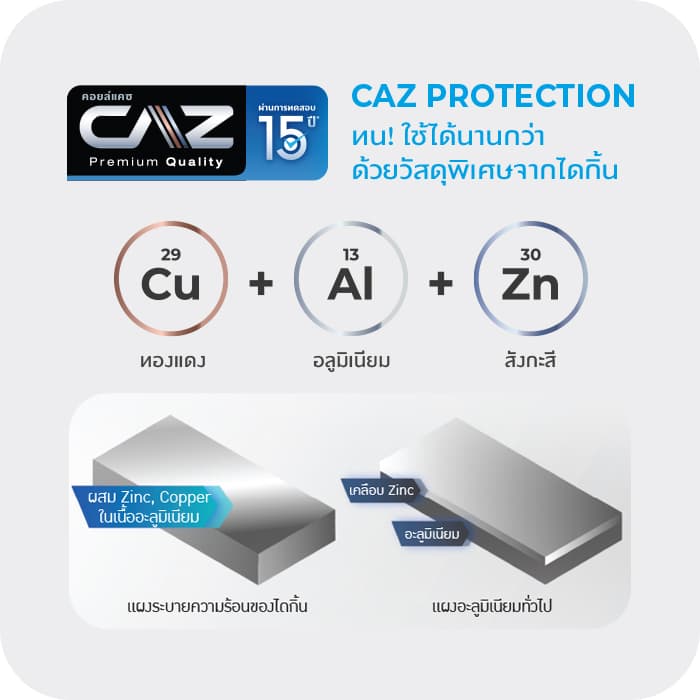

CAZ Coil Protection

Coil made from Daikin's zinc and copper blend resists corrosion.

Energy Saving Label No.5

The R32 inverter design improves SEER over previous models.

Other Features

Wired Remote Control

Sleek remote with four-directional buttons and a large, clear LCD screen.

Detachable Blower

A one-piece blower that can be removed entirely for easier maintenance.

Bottom E-Box Access

The electrical box can be serviced from the bottom instead of only from the side.

Quiet Operation

As low as 25 dB(A) at the lowest fan speed, ideal for bedrooms.

Refrigerant R32

Eco-friendly refrigerant with roughly 3x lower GWP than R410A.

3-Level Fan Speed

Three fan speed levels plus an automatic mode.

Product Specification

Specification	Unit	Remarks
Cooling Capacity	kW	3.8/(1.8～4.5)
Cooling Capacity	BTU/hr	13,000/(6100～15400)
Power Consumption	W	1,120
SEER	BTU/W.h	17.07
Power Supply	V/Ph/Hz	220 / 1 / 50
Indoor Unit
Model		FDBF13EV2S
Air Flow Rate	m³/min	14 /11 / 9.5
Air Flow Rate	cfm	494 / 388 / 335
Fan Speed		3Step
Sound Level	dB(A)	36 / 32 / 25
Dimensions (HxWxD)	mm	245 x 700 x 800
Weight	kg	26
Drain Pipe		VP25(I.D.ϕ25 × O.D.ϕ34)
Outdoor Unit
Model		RZFC13EV2S
Color		Ivory white
Sound Level	dB(A)	48
Dimensions (HxWxD)	mm	595x845x300
Weight	kg	34
Liquid Pipe		Ø6.4 (Flare)
Gas Pipe		Ø12.7 (Flare)
Compressor		Hermetically sealed swing type
Refrigerant		R32
Max Piping Length (no extra refrigerant)	m	15
Max Piping Length	m	30 (equivalent length 40 m)
Max Height Difference	m	15
Coil Protection		CAZ Protection (Anti - Corrosion Micro Channel)
