Sky Air

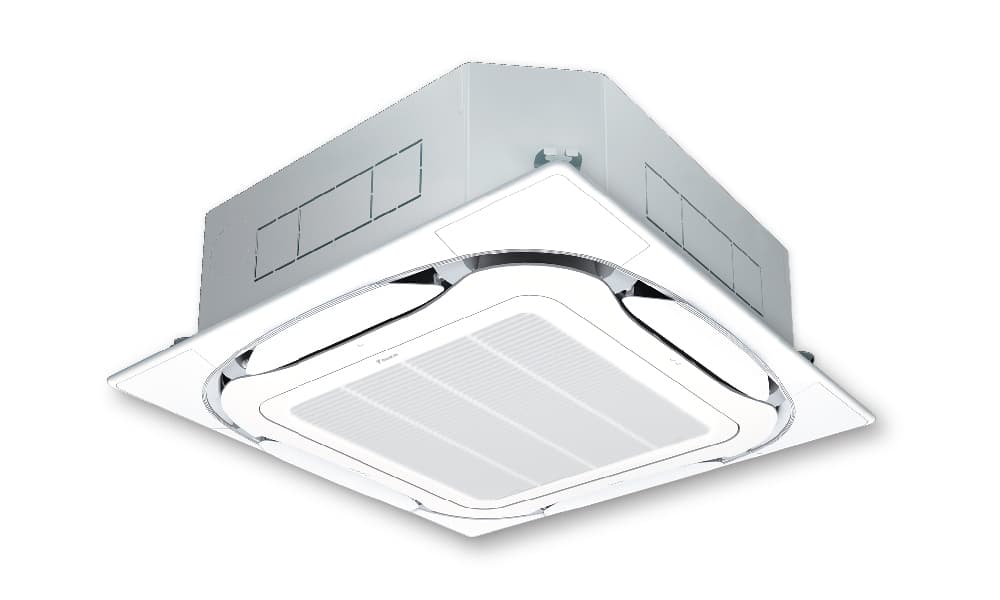

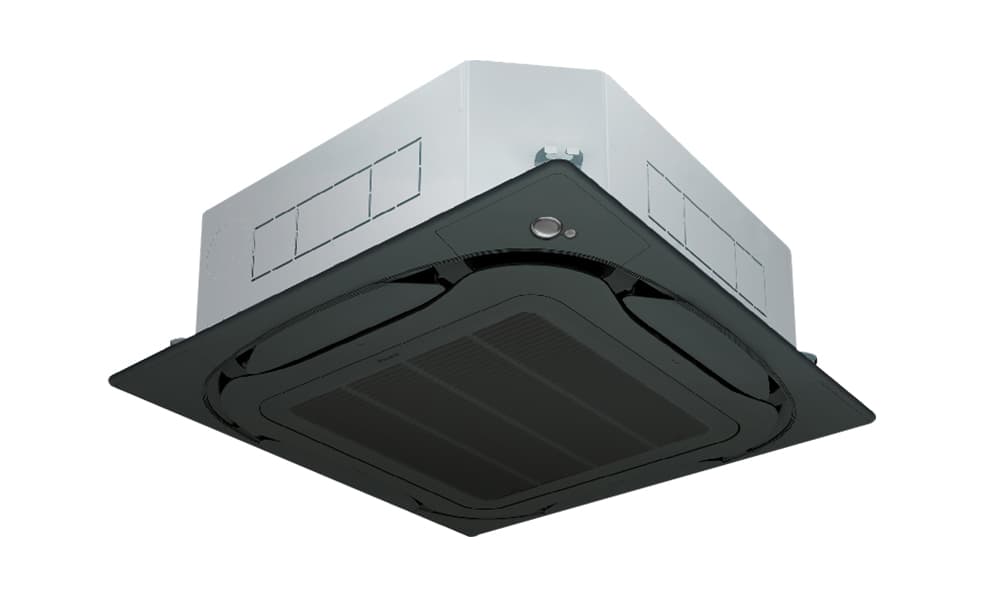

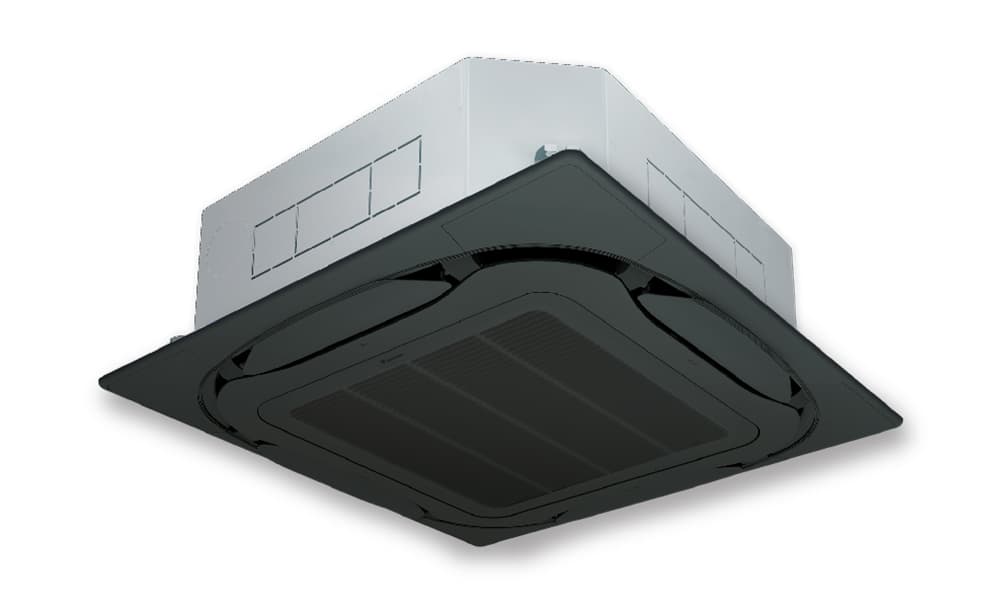

A 360° round flow cassette earning Energy Saving Label No.5, built around a swing inverter compressor for quiet, efficient operation as low as 27.5 dB(A). Compatible with existing R22 refrigerant piping to reduce installation costs, with a CAZ-coated coil for corrosion resistance.

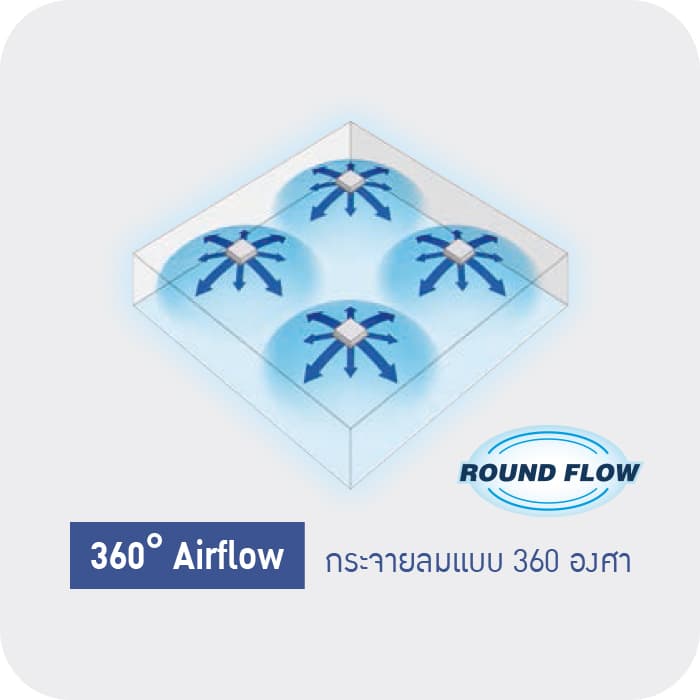

Circulates air evenly across the room through a 360-degree louver.

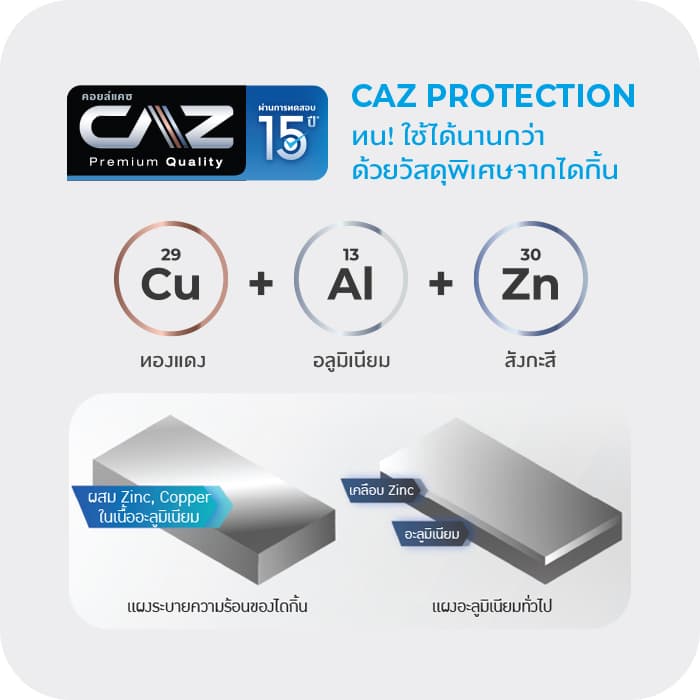

Special zinc, copper and aluminum coil blend resists corrosion for a longer service life.
Earns the top energy efficiency rating for lower running costs.
Works with existing R22 refrigerant piping, reducing installation costs on replacement projects.
Silver-ion coating helps prevent odors and bacterial growth in the drain tray.
Reduces friction, vibration and refrigerant leakage for efficient operation.
Larger capacity models support ceilings up to 4.3 meters high.
Only needs cleaning about once a year, even in dusty environments.
Eco-friendly refrigerant with higher cooling capability than R22 and R410A.
| Specification | Unit | Remarks |
|---|---|---|
| Cooling Capacity | kW | 4.1/(1.8~4.5) |
| Cooling Capacity | BTU/hr | 13880 / (6100~15400) |
| Power Consumption | W | 755 |
| SEER | BTU/W.h | 26.00 |
| Energy Label | No.5 (5-star) | |
| Power Supply | V/Ph/Hz | 220 / 1 / 50 |
| Indoor Unit | ||
| Model | FCF13DV2S | |
| Color | Fresh white | |
| Air Flow Rate | m³/min | 23 / 21 / 18.5 / 16 / 13.5 |
| Air Flow Rate | cfm | 812 / 741 / 653 / 565 / 477 |
| Fan Speed | 5Step , Auto | |
| Air Filter | Resin net | |
| Sound Level | dB(A) | 37 / 34.5 / 32 / 29.5 / 27.5 |
| Dimensions (HxWxD) | mm | 256 x 840 x 840 |
| Weight | kg | 22 |
| Drain Pipe | VP25 (I.D.Ø25 x O.D.Ø34) | |
| Outdoor Unit | ||
| Model | RZF13DV2S | |
| Color | Ivory white | |
| Sound Level | dB(A) | 48 |
| Dimensions (HxWxD) | mm | 595 x 845 x 300 |
| Weight | kg | 41 |
| Liquid Pipe | Ø9.5mm / 3/8 Inch / 3 Hun (Flare) | |
| Gas Pipe | Ø15.9mm / 5/8 Inch / 5 Hun (Flare) | |
| Compressor | Hermetically sealed swing type | |
| Refrigerant | R32 | |
| Max Piping Length (no extra refrigerant) | m | 30 |
| Max Piping Length | m | 50 (Equivalent length 70m) |
| Max Height Difference | m | 30 |
| Coil Protection | CAZ Protection (Anti - Corrosion Micro Channel) | |
