Sky Air
A concealed middle-static-pressure duct unit only 24.5 cm tall, feeding cool air through ductwork with adjustable static pressure from 50–150 Pa. Uses R32 refrigerant and a CAZ-protected coil, with a swing compressor for efficient, quiet operation.

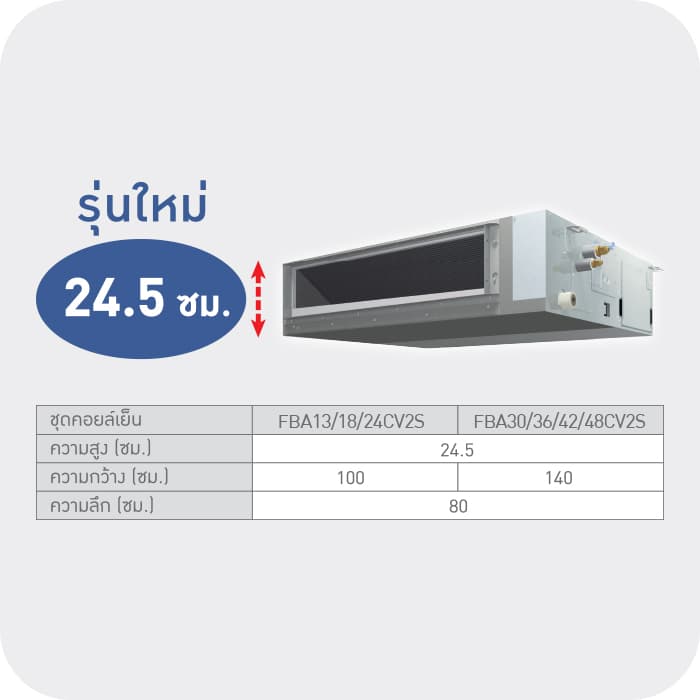

Only 24.5 cm tall, making installation possible in limited ceiling spaces.
External static pressure can be set between 50 and 150 Pa for flexible ductwork design.

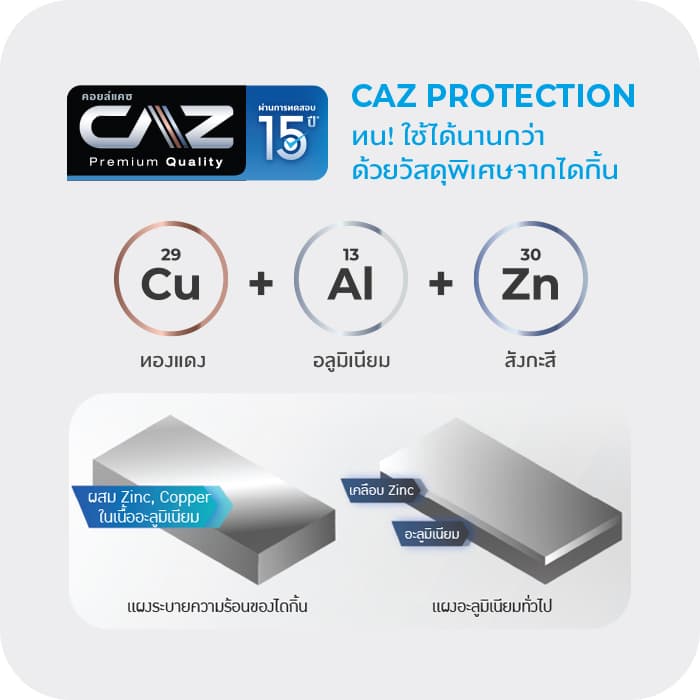

Anti-corrosion coating on the heat exchanger extends service life.
Allows drainage to be routed to a higher point than the unit itself.
Reduces friction and vibration for efficient, quiet operation.
Simplifies maintenance access.
Silver-ion coating helps prevent odors and bacterial growth.
Works with existing R22 refrigerant piping to reduce installation costs.
| Specification | Unit | Remarks |
|---|---|---|
| Cooling Capacity | kW | 3.8/ (1.8～4.5) |
| Cooling Capacity | BTU/hr | 13,040/(6100～15400) |
| Power Consumption | W | 810 |
| SEER | BTU/W.h | 22.10 |
| Energy Label | No.5 (3-star) | |
| Power Supply | V/Ph/Hz | 220 / 1 / 50 |
| Indoor Unit | ||
| Model | FBA13CV2S | |
| Air Flow Rate | m³/min | 18/15/12.5 |
| Air Flow Rate | cfm | 635 / 530 / 441 |
| Fan Speed | 3Step, Auto | |
| Sound Level | dB(A) | 35/33/31 |
| Dimensions (HxWxD) | mm | 245x1000x800 |
| Weight | kg | 37 |
| Drain Pipe | VP25 (I.D.Ø25 x O.D.Ø34) | |
| Outdoor Unit | ||
| Model | RZF13DV2S | |
| Color | Ivory white (สีขาวงาช้าง) | |
| Sound Level | dB(A) | 48 |
| Dimensions (HxWxD) | mm | 595 x 845 x 300 |
| Weight | kg | 41 |
| Liquid Pipe | Ø9.5mm / 3/8 Inch / 3 Hun (Flare) | |
| Gas Pipe | Ø15.9mm / 5/8 Inch / 5 Hun (Flare) | |
| Compressor | Hermetically sealed swing type | |
| Refrigerant | R32 | |
| Max Piping Length (no extra refrigerant) | m | 30 |
| Max Piping Length | m | 50 (Equivalent length 70m) |
| Max Height Difference | m | 30 |
| Coil Protection | CAZ Protection (Anti - Corrosion Micro Channel) | |
